PALLET 121015 CFT

ARISTO

	Item Code	Dimension	Dynamic Load	Static Load	Racking Load	Material	4 WAY	2 WAY	Metal Tube

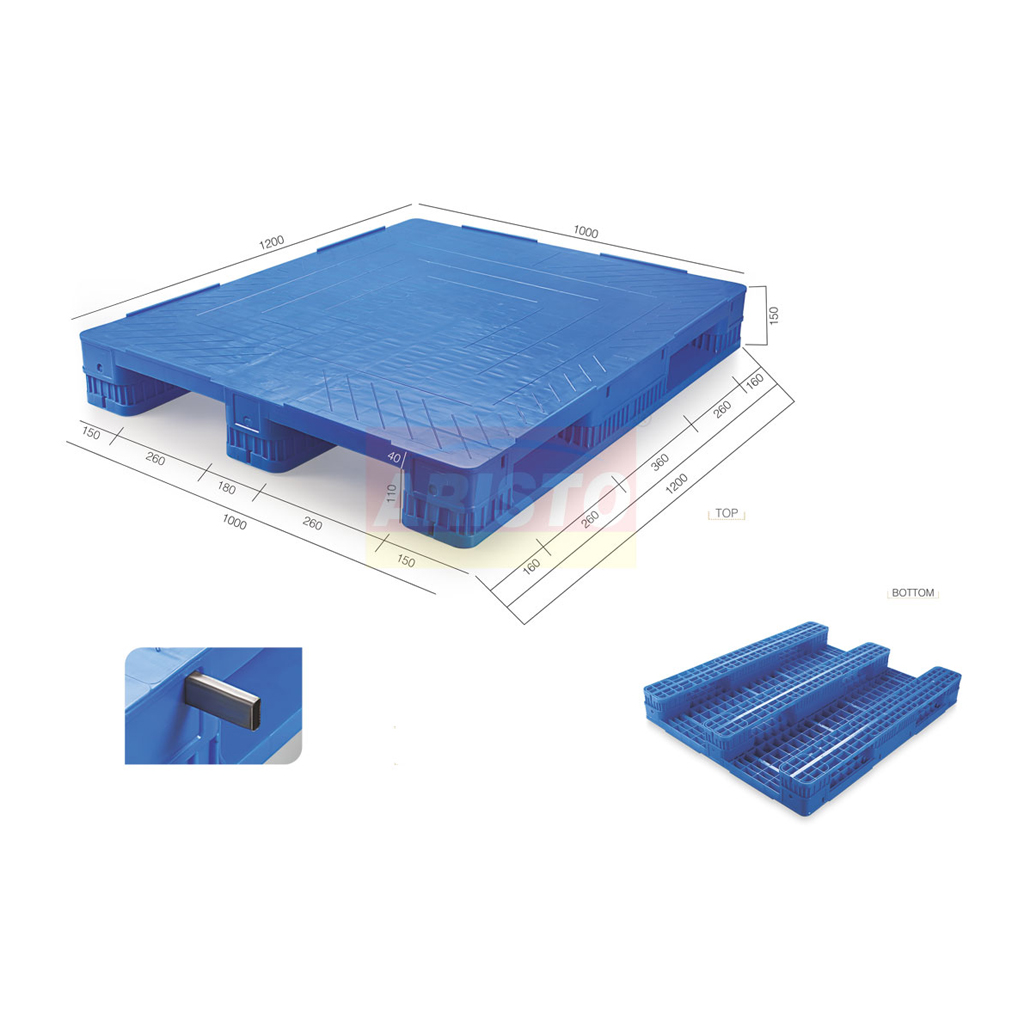

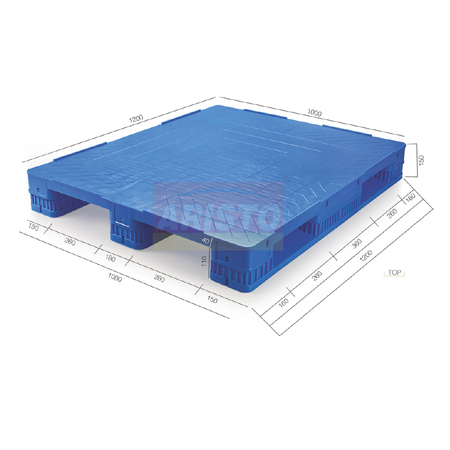

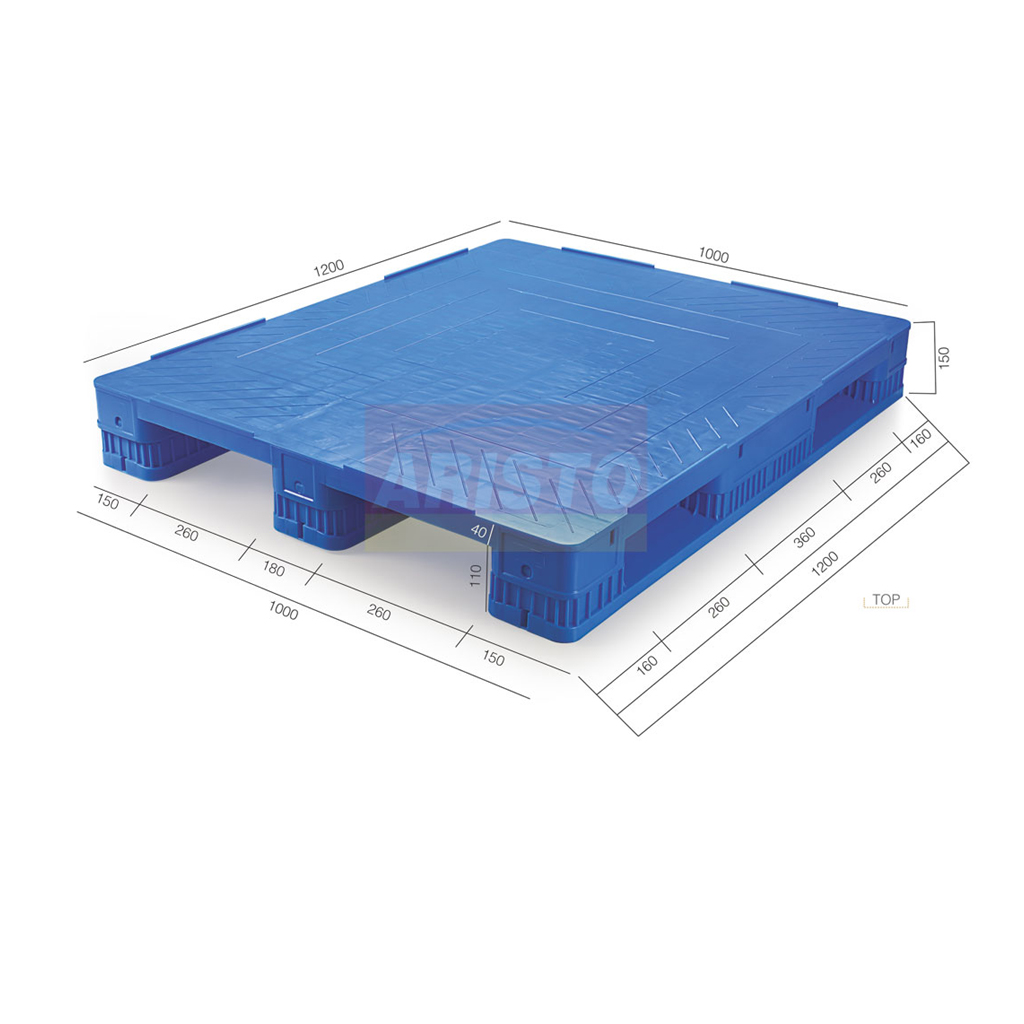

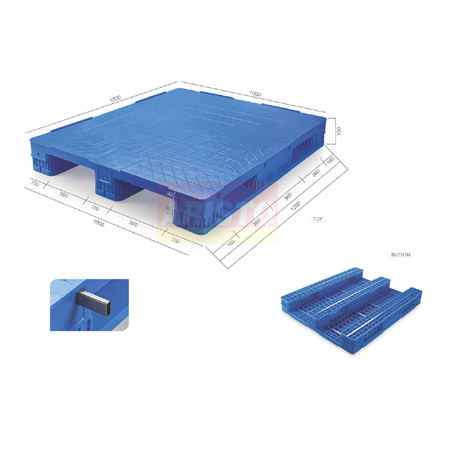

	121015 CFT \| 3 LEG PALLET	1200 X 1000 X 150 mm	1000 kgs	4500 kgs	800 kgs	HDPE	Yes	Yes	Yes

Steel Reinforcement Enhancing The Load Bearing Capacity

Available in 121008, 121013, 121015 & 121016 Series

NOTE:

Load Should Be Uniformly Distributed All Over The Surface.
Steel Reinforcement Is Must For Racking Load.
It Is Recommended To Lift Pallet From Short Side With Jaw Size Of Forklift Adjusted At 685 Mm.
Do Not Throw / Shoulder Drop Goods On Pallet
Static Load & ynamic Load Is Being Calculated On Coverage Of Entire Pallet Area.
